• Chrome front bumper
• Chrome rear step bumper
• Chrome grille/headlamp surround
• Box-rail/tailgate moldings
• Dual manual aero mirrors w/black caps
• Interval wipers
• Black door handles
• Removable tailgate w/black handle

• Cloth bench seat
• Black vinyl floor covering
• Voltmeter, oil pressure/temp/speedometer/fuel gauges
• Securilock anti-theft ignition
• Electronic AM/FM stereo radio-inc: digital clock, (2) speakers
• Dual instrument-panel-mounted cupholders
• Auxiliary pwr point in instrument panel
• Vinyl upper door trim w/integral armrest, door pull handle, map pocket
• Color-keyed headliner
• Cloth sun visors w/LH strap, RH mirror
• Dome light w/dual map lights
• Underhood light
• Back panel cover

• Driver & front passenger air bags w/passenger-side deactivation switch
• Seat belts w/adjustable shoulder
• Rear-wheel anti-lock brake system
• Side door intrusion beams

4.2L EFI V6 ENGINE

• (STD)

• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Steel Wheels
• Power Steering
• Front Disc/Rear Drum Brakes
• Intermittent Wipers
• Cloth Seats
• Fixed Bench Seat
• Immobilizer
• AM/FM Stereo
• Power Outlet
• Front Reading Lamps
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1425
• Cooling System
• Total Cooling System Capacity (qts): 20.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2500
• Gross Axle Wt Rating - Rear (lbs): 3200
• Curb Weight - Front (lbs): 2217
• Curb Weight - Rear (lbs): 1706
• Gross Vehicle Weight Rating Cap (lbs): 5600
• Gross Combined Wt Rating (lbs): 6,500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4,000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 4,000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1,000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2500
• Spring Capacity - Rear (lbs): 3200
• Axle Type - Front: Twin Forged SLA
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3400
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.03 x 2.25
• Tires
• Front Tire Order Code: T52
• Rear Tire Order Code: T52
• Spare Tire Order Code: T52
• Front Tire Size: P235/70R16SL
• Rear Tire Size: P235/70R16SL
• Spare Tire Size: P235/70R16SL
• Front Tire Capacity (lbs): 1804
• Rear Tire Capacity (lbs): 1804
• Spare Tire Capacity (lbs): 1804
• Revolutions/Mile @ 45 mph - Front: 719
• Revolutions/Mile @ 45 mph - Rear: 719
• Revolutions/Mile @ 45 mph - Spare: 719
• Wheels
• Front Wheel Size (in): 16.0 x 7.0
• Rear Wheel Size (in): 16.0 x 7.0
• Spare Wheel Size (in): 16.0 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 14
• Turning Diameter - Curb to Curb (ft): 40.5
• Turning Diameter - Wall to Wall (ft): 42.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 119.9
• Length, Overall w/o rear bumper (in): 205.6
• Width, Max w/o mirrors (in): 78.4
• Height, Overall (in): 72.7
• Overhang, Front (in): 37.2
• Overhang, Rear w/o bumper (in): 48.5
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 32.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 62.1 @ Belt
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.7
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 58.6
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.8
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 63.8
• Front Hip Room (in): 61.3
• Summary

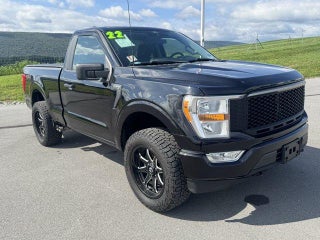

• Vehicle Name: Ford F-150
• Body Style: Reg Cab 6.5' Styleside
• Body Code: 119.9" WB
